Denali B6 LED Brake Light Module 6 LED'S Red 12V

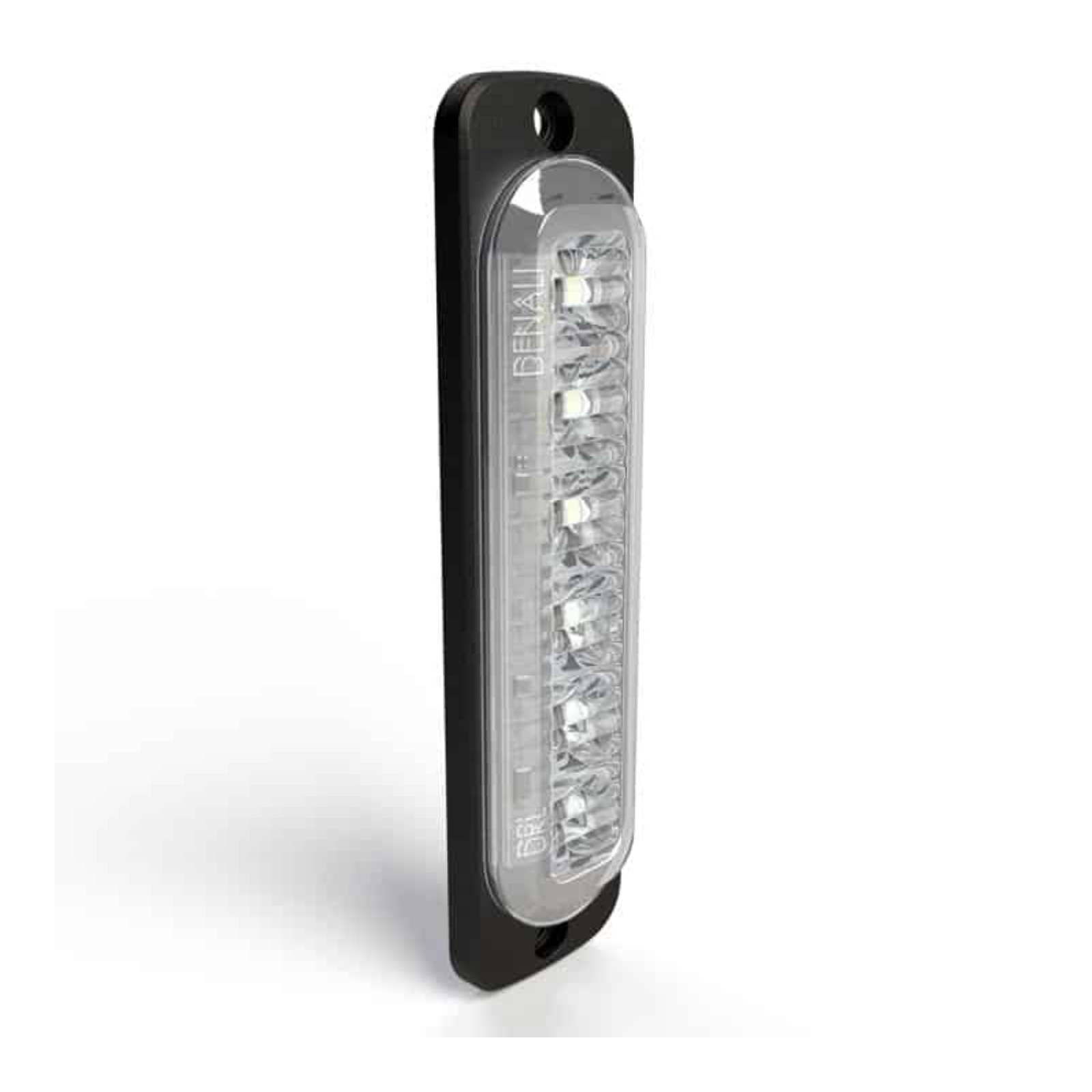

Purpose built to create the most amount of light from the smallest, most low-profile, housing possible, the B6 Brake Light is unbelievably bright but will practically disappear once installed.

Complete with an integrated run-brake circuit, the three-wire B6 pod with run at 50% intensity on the red wire and switch to 100% full intensity through the orange wire.

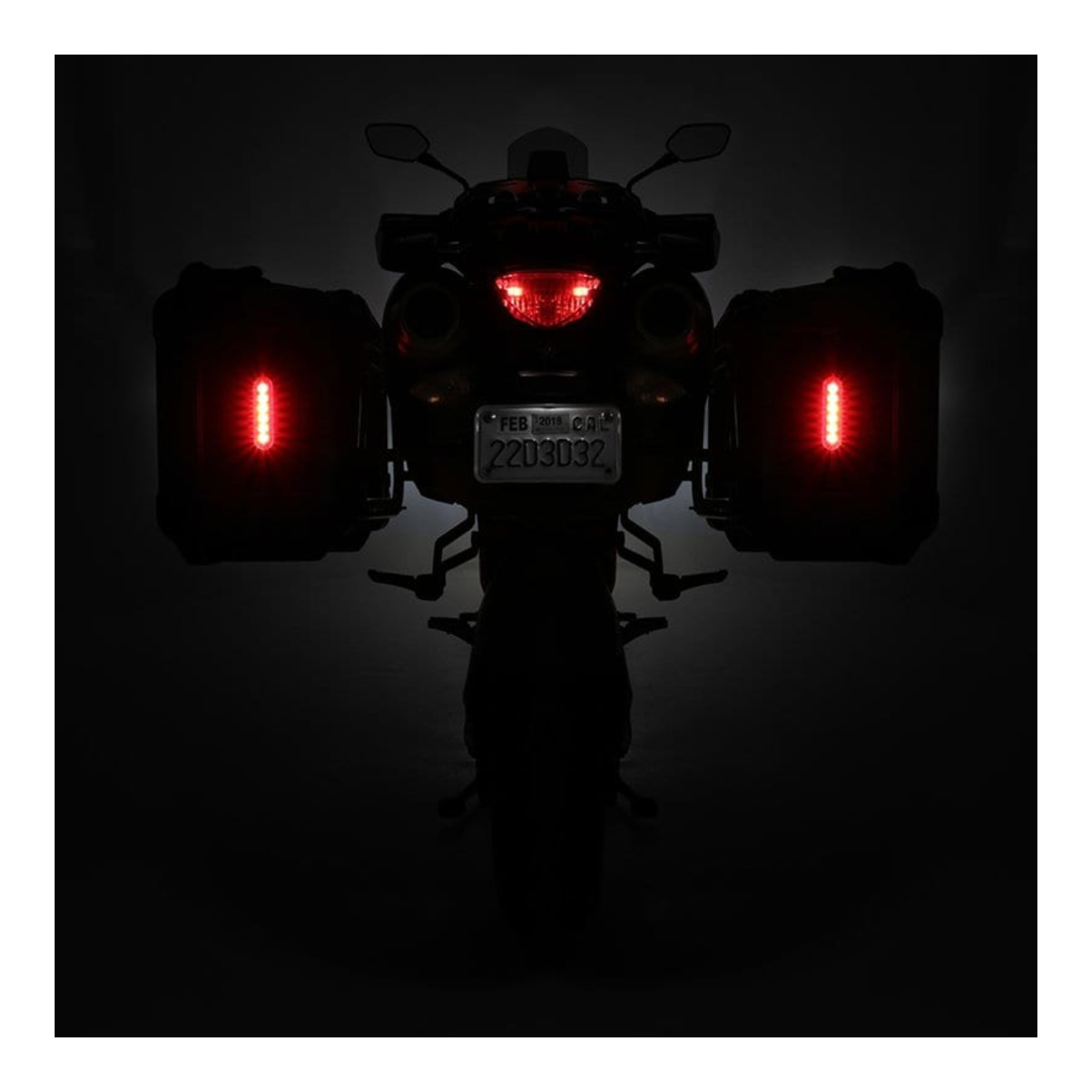

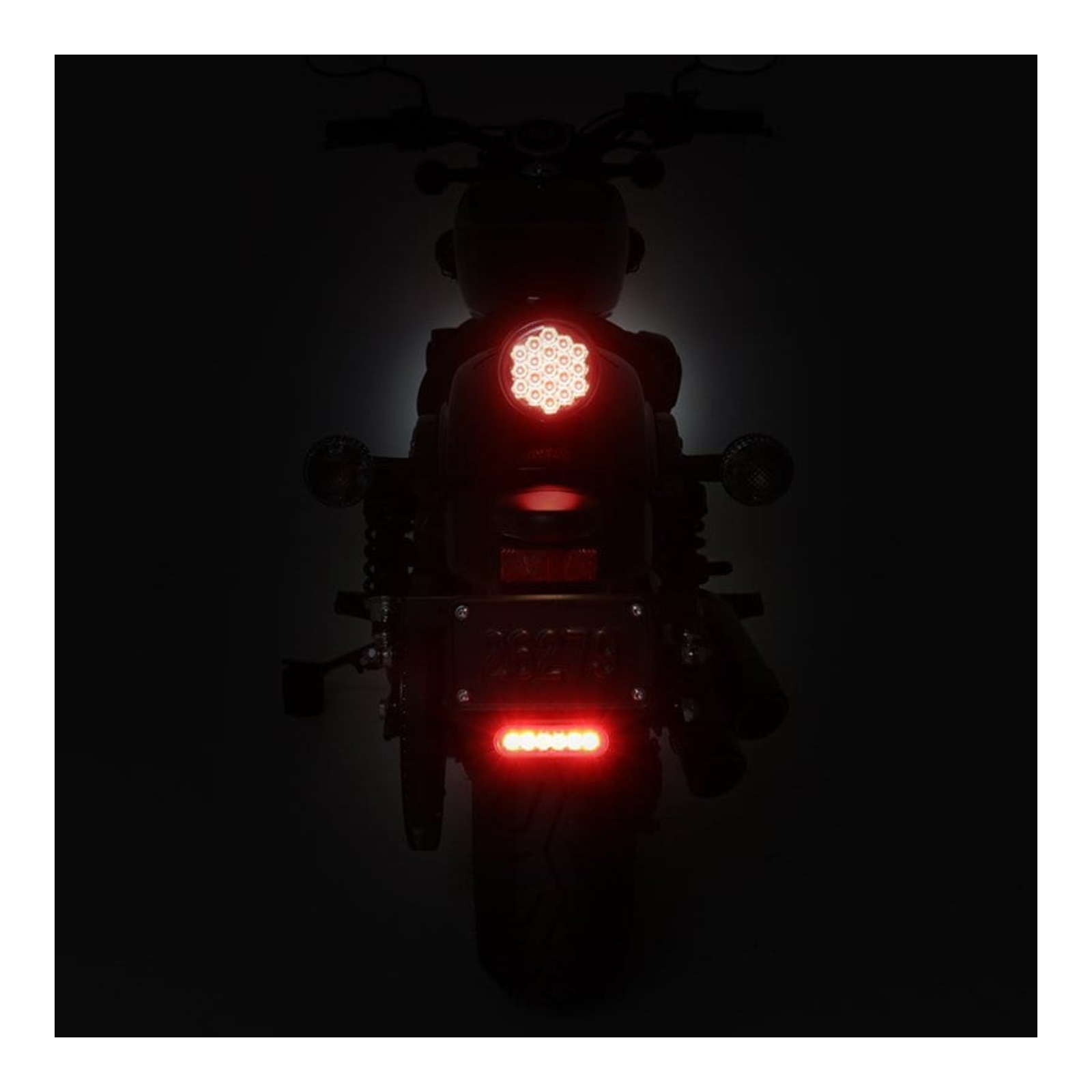

The B6 brake light pods are compatible with a variety of mounting kits that enable the pods to be mounted below a license plate, on the side of a license plate or flush mountedonto any flat surface.

Complete with a waterproof micro connector and included posi-taps, the B6 is super easy to connect into any vehicles brake light circuit. The B6 also connects directly to the DENALI CANsmart™ Controller to enable programmable flash pattern braking and deceleration activated auto brake light functionality making the B6 the brightest and most feature-rich auxiliary brake light on the market.

Features

• Dual Circuit: Running and brake
• 180 degree viewing angle
• Six high power LEDs
• Low 6 watt power consumption
• Low profile design
• Easy to connect to vehicle brake circuit

Specs

• Power Draw: 0.5 Amp
• Voltage: 12V DC
• Size: 4.4" x 1.1" x 0.42"
• Weight: 0.15 lbs
• Raw Lumens: 870
• IP67 Waterproof

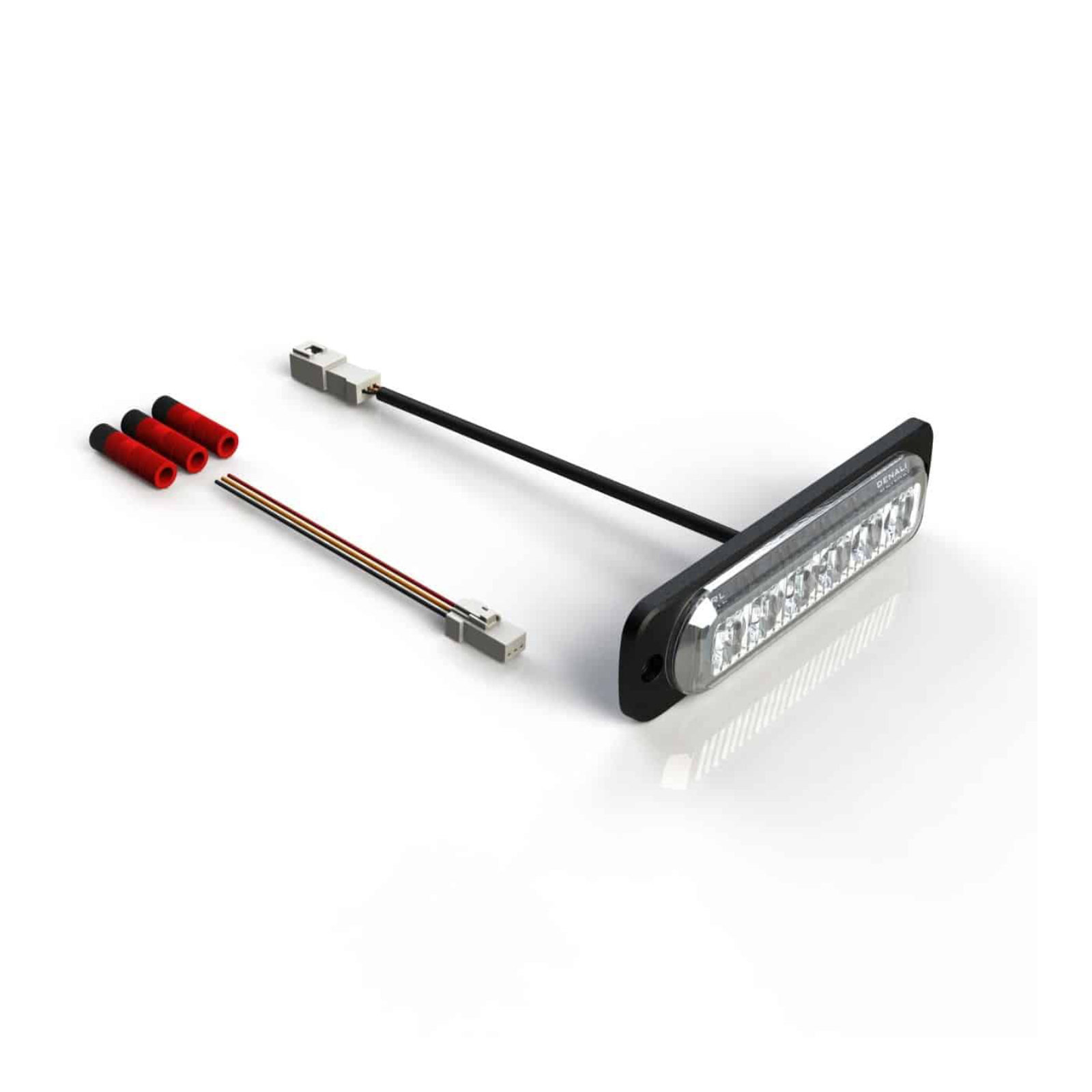

What's In The Box?

• (x1) DENALI Red B6 Brake Light Visibility Pod
• (x1) Wiring Pigtail
• (x3) Posi-Tap Connectors
