HEX ezCAN Accessory Manager for BMW R1200GS/R1250GS LC/R1200GSA LC

The HEX ezCAN Accessory Manager for your BMW R1200GS & R1250GS Water Cooled motorcycle is a one switch solution that lets you add and configure accessories with ease and without cutting any wires.

Sold Out - This product is currently out of stock.

SKU: H3-EZL-002

It's simple and easy to fit additional lights, an air horn, accessories and emergency brake lights that make the bike safer to ride.

This model is designed for the R1200GS & R1250GS LC series. Compatibility to be expanded to other models are listed under fitment.

Key features

Waterproof and dustproof
One switch manages everything
Integrates additional safety features
Does not void warranty
Plugs directly into CAN-Bus (saves time)
Unobtrusive - fits perfectly under the seat
Easy configuration of software via USB (Windows PC and MAC)
Four individually fused channels

Specifications and components

Waterproof micro USB connector
Battery connection and fuse
Two CAN-Bus connectors
Two high-power outputs (10A continuous / 25A, max 20 seconds)
Two low-power outputs (4A continuous)
Product size 55 x 30 x 16mm (2,2 x 1,2 x 0,6")

Easy installation

Step 1: Download and install the HEX ezCAN software (Available HERE)
Step 2: Install the ezCAN under the seat (Velcro included)
Step 3: Route and connect the ezCAN battery cables
Step 4: Plug the ezCAN into the motorcycle CAN-Bus
Step 5: Plug accessories into the ezCAN
Step 6: Use the software to configure the ezCAN via USB (Windows PC or MAC)

Use Channel Mapping to select your preferred configuration. The Configuration window then lets you customize the behaviour of your accessories according to CAN-Bus inputs, for example setting up an emergency brake light to flash when the ezCAN detects harsh deceleration or the LEDs to flash when the air horn is activated. Accessory/Ignition supply can be set to remain on for a specific time after the ignition is turned off.

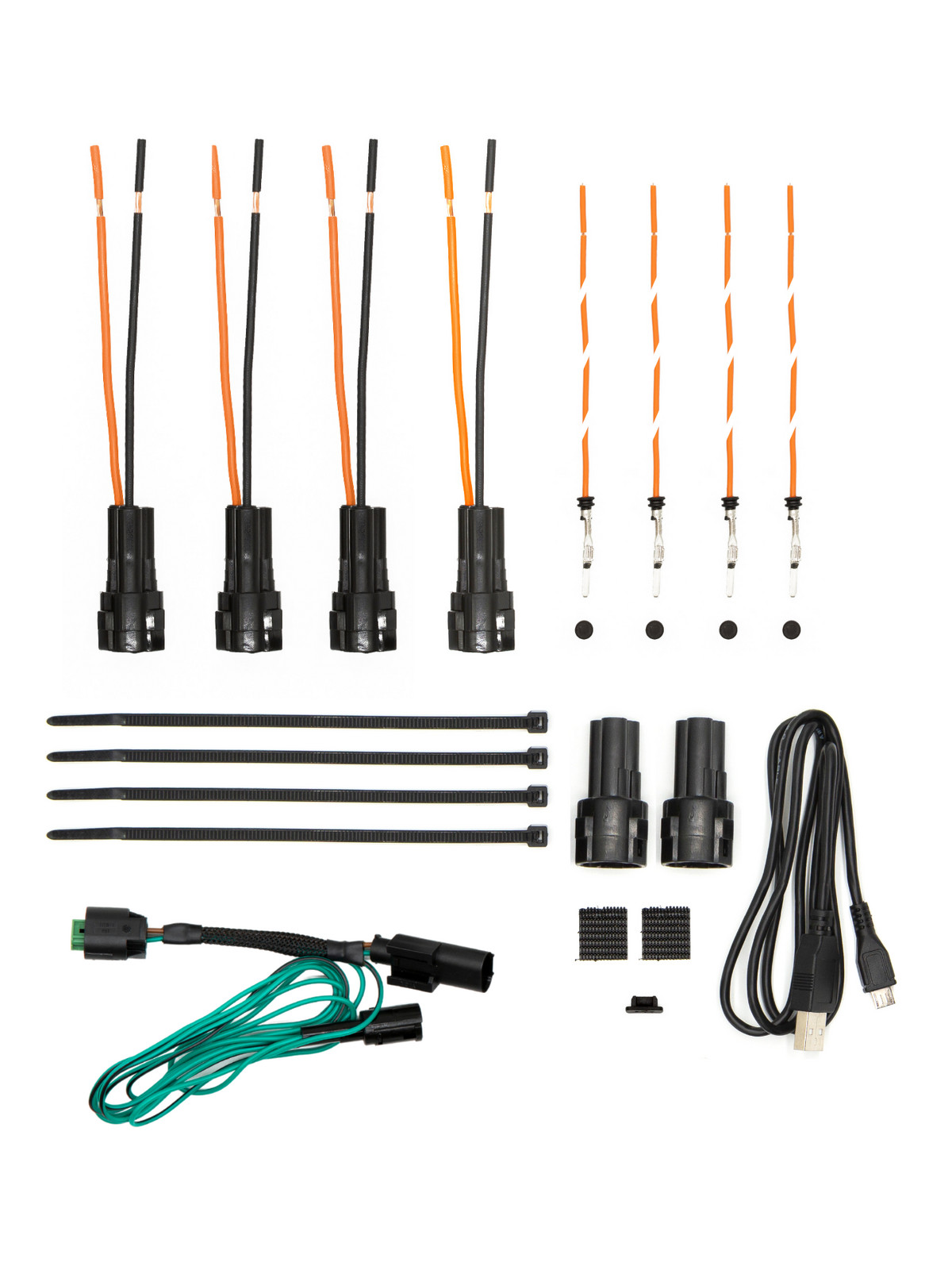

Contents of package

HEX ezCAN device
Micro USB cable
Two Velcro strips
Four cable ties
Four stub connectors
Two blank connectors

Please note: We recommend that this product be installed by a professional. Please ensure you have purchased the correct product before opening. Opened box, electronics that have been removed from factory sealed packaging, installed, and/or “activated” cannot be returned. However, we can help you troubleshoot installation, resolve or repair any suspected defects with the manufacturer.

About Hex ezCAN:

The HEX ezCAN plugs directly into your bike's CAN-bus and provides you with a highly configurable, seamless plug and play solution to add up to four accessories to your bike without the need to cut any wires or void your warranty. It provides the ability to customise your bike, manage your accessories safely, program their operation, and make it safer to ride. Hex Innovate also produce a number of diagnostic tools that give you greater insight into what’s going on inside your motorcycle with a Windows PC.

View more Hex ezCAN products

SKU	H3-EZL-002
MPN	H3-EZL-002
Supplier SKU	H3-EZL-002

(H3-EZL-002)

Fits the following bikes:
