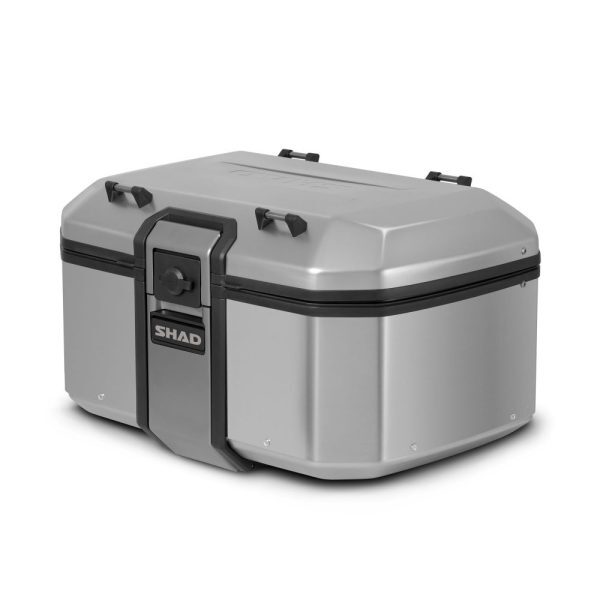

SHAD TR55 Terra Alloy Top Case

Designed and made 100% in Barcelona. Its innovative design minimises visual impact on the motorcycle.

It also boasts all technical features that have made the TERRA range a benchmark, such as the ‘TERRA Lock System’ (patent pending). The TERRA TR55 top case has been awarded with the ABC Awards, thanks to its design focused on solving key aspects for the use on adventure motorcycles.

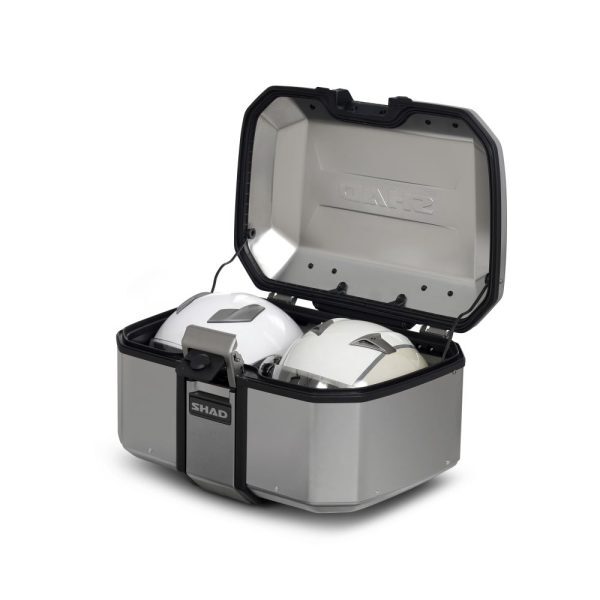

“TERRA TR55 top case has capacity for two flip-up helmets and stands out since it is the lightest aluminium case on the market at 5.4 kg. Designed and made 100% in Barcelona. Its innovative design minimises visual impact on the motorcycle. The TERRA TR55 top case has been awarded with the ABC Awards, thanks to its design focused on solving key aspects for the use on adventure motorcycles.

It has an aerodynamic, integrated structure made from a hardened aluminium alloy, a stronger and lighter type of aluminium which allows a reduced cross section of 1.2mm to obtain minimum weight with maximum resistance.
As with all TERRA aluminium cases, the ‘TERRA Lock System’ (patent pending) is included. With an AISI 304 industrial grade stainless steel structure which includes the lock system and a retractable carrying handle. This structure was designed for quick, one-hand usage and allows the user to open, close, remove, and transport the case within seconds. AISI 304 stainless steel hinges are also available.

The case’s rubber sealed frame protects the interior from unfavorable weather conditions (water resistance). In addition, the inner foam base reduces movement of the load inside.

The keys and lock cylinder of the TR55 are the premium version from SHAD, with a system that reduces the chance of theft, as well as a cover that stops dust from entering.

There is the option to add additional load thanks to its external AISI 304 stainless steel hooks.

The installation of a SHAD Top Master and a mounting plate (not included) are required. There are three mounting plate options: SHAD standard plate (D1B591PA), aluminium mounting plate (D1BTRPA), or the black aluminium mounting plate (D1BTRPA2).

The lock cylinders are easily changed: top and side cases can be unified for use with one key in less than 5 minutes. A third cylinder is included for the top case in the right-side Pannier case ( when Purchased).
